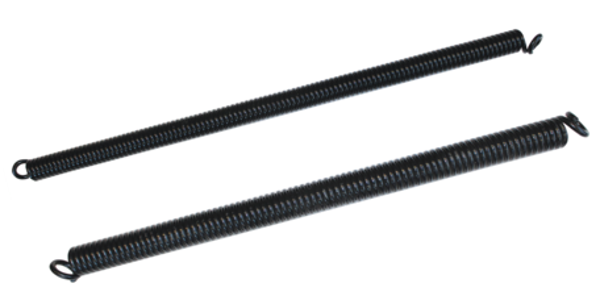

Foulger External Ramp Spring - Side Mounted

Foulger External Ramp Spring - Side Mounted
£121.25
Item number: ARMP3

Choose from lightweight or heavy duty.

This assembly works on the variable rate principle (i.e. work done by the spring increases as the load grows). The spring is unstressed when ramp is closed except for slight tension to prevent rattle. Spring tension is easily adjusted, thus enabling ramp to be correctly balanced.

Specification:

  • 150kg (Lightweight) & 200kg (Heavy Duty) per pair capacities
  • Size: Overall Length 1220mm, Coil Length 1092mm x ø50mm (Lightweight) & ø70mm (Heavy Duty)
  • Black powder coated springs

Priced individually.
